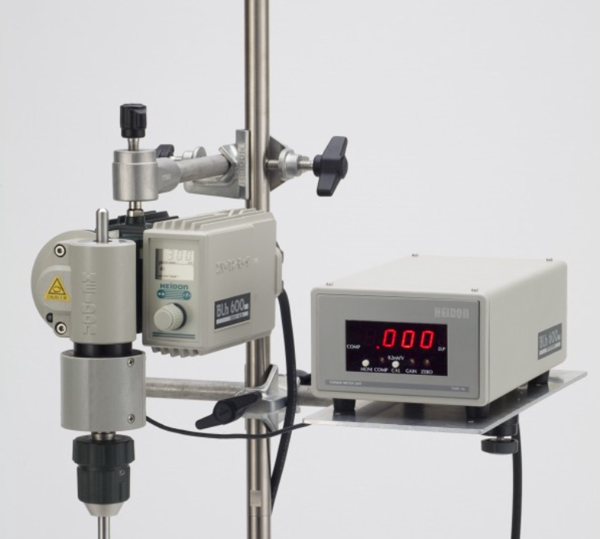

Image of BL300Te/BL600Te/BL1200Te
Agitators with Torque Converters
BL300Te/BL600Te/BL1200Te

The Te Series incorporates a slip-ring type strain torque converter in the drive shaft, and displays and outputs the torque value after it has been amplified by the dynamic strain amplifier inside the control box. The agitating equipment can use the torque to carry out outstandingly accurate measurement of the changes in viscosity.

Features
  • Carries out precise measurement of the actual load acting on the agitator blade using a strain type torque converter.
  • The torque value is output as an analog voltage so that changes in the viscosity can be understood.
  • During the agitation, even if there are changes in viscosity the set rotation speed will be maintained.
  • Utilizes a powerful brushless motor that does not generate sparks.
  • During agitating work, one-switch operation changes the rotation direction.
  • Does not output noise that would adversely affect other equipment, and incorporates measures to prevent mis-operation even when affected by noise.
  • Provided with protection equipment such as a current restricting circuit and thermal protector to protect against agitator motor overloading.
Feature image
Feature image
Specifications
BL300Te/BL600Te/BL1200Te
Applications
BL300Te：High Viscosity
BL600Te：Medium to High Viscosity
BL1200Te：Low to Medium Viscosity
Rotation Speed
BL300Te：5～300rpm
BL600Te：10～600rpm
BL1200Te：20～1200rpm
Rated Torque
BL300Te：1.3N･m
BL600Te：0.7N･m
BL1200Te：0.3N･m
Motor
DC Brushless Motor B Type Insulation 40W
Rotation Control
Feedback Control and Forward/Reverse Rotation Switching (Timer mode, manual)
Forward/Reverse Rotation Timer
5, 10, 20, 30, 45, 60 sec Setting Switching Possible
Torque Output
Analog Voltage: DC0-1V=0-1N/m (0-10.2kgf/cm)
Panel Display
Rotation Speed Digital 4 Digits, and Overloading Display; Torque Indicator (1 graduation 20%)
Chuck
φ8mm Collet-type Hand-tightening Chuck
Safety Equipment
Current Restricting Circuit, Thermal Protector: Motor Coil Temperature 90℃, Safety Cover
Power Cable
2m Power Cable with 2-pole Grounded Plug
Power Supply and Consumption
BL300Te：Single Phase 100V±10% Joint Use 50/60Hz 130VA
BL600Te：Single Phase 100V±10% Joint Use 50/60Hz 120VA
BL1200Te：Single Phase 100V±10% Joint Use 50/60Hz 120VA
Dimensions and Weight
BL300Te : Main Unit: W125mm x D190.5mm x H196mm, 2.4Kg
Dynamic Strain Amplifier: W118 x D220 x H80, 750g
BL600Te : Main Unit: W135mm x D170mm x H264mm, 3.0Kg
Dynamic Strain Amplifier: W118 x D220 x H80, 750g
BL1200Te : Main Unit: W135mm x D170mm x H264mm, 3.0Kg
Dynamic Strain Amplifier: W118 x D220 x H80, 750g
Standard Accessories
Clamp Holder (Type: 21 x 16) 1 piece
