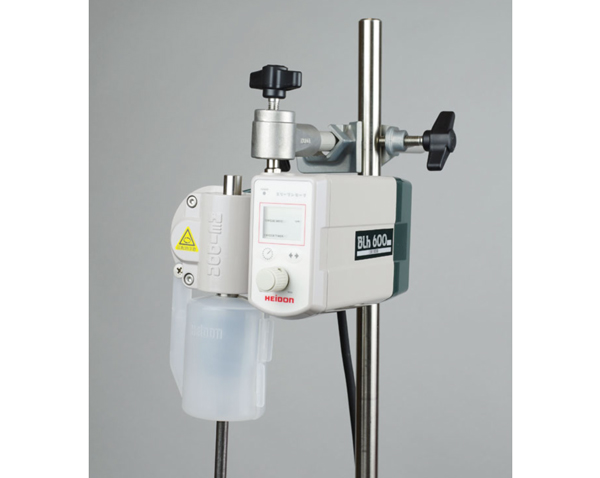

Image of BL300/BL600/BL1200/BL3000
General Purpose Agitators
BL300/BL600/BL1200/BL3000

The series utilizes a maintenance-free brushless motor that was developed to handle demanding agitation situations.
The forward/reverse rotation function allows changing of the rotation direction to completely eliminate the ring-shaped unmixed area that is generated with one-directional agitation. When using tilted-type blades (square cross, propeller, etc.), the axis direction flow will also be reversed, enabling an even better effect to be achieved.

Features
  • The exceptional quietness will not interfere with the laboratory environment.
  • During the agitation, even if there are changes in viscosity the set rotation speed will be maintained.
  • Utilizes a powerful brushless motor that does not generate sparks.
  • During agitating work, one-switch operation changes the rotation direction.
  • Does not output noise that would adversely affect other equipment, and incorporates measures to prevent mis-operation even when affected by noise.
  • Provided with protection equipment such as a current restricting circuit and thermal protector to protect against agitator motor overloading.
Feature image
Operation image
Specifications
BL300/BL600/BL1200/BL3000
Applications
BL300：High Viscosity
BL600：Medium to High Viscosity
BL1200： Low to Medium Viscosity
BL3000： Low Viscosity
Rotation Speed
BL300：5～300rpm
BL600：10～600rpm
BL1200：20～1200rpm
BL3000：50～3000rpm
Rated Torque
BL300：1.3N･m
BL600：0.7N･m
BL1200：0.3N･m
BL3000：0.1N･m
Motor
DC Brushless Motor B Type Insulation 40W
Rotation Control
Feedback Control and Forward/Reverse Rotation Switching (Timer mode, manual)
Forward/Reverse Rotation Timer
5, 10, 20, 30, 45, and 60 sec Setting Switching Possible
Panel Display
Rotation Speed Digital 4 Digits, and Overloading Display; Torque Indicator (1 graduation 20%)
Chuck
φ8mm Collet-type Hand-tightening chuck
Safety Equipment
Current limiting circuit, thermal protector: motor coil temperature 90°C, safety cover
Power Cable
2m Power Cable with 2-pole Grounded Plug
Power Supply and Consumption
Single Phase 100-220V 120VA
Dimensions and Weight
BL300/BL600/BL1200 : Main Unit: W135mm x D172mm x H211mm, 2.0Kg
BL3000 : Main Unit: W135mm x D175mm x H211mm, 2.0Kg
Standard Accessories
Clamp Holder (Type: 21 x 16) 1 piece, Safety Cover
