Magnet stirring seal Mighty mug seal

マグネット撹拌シール マイティマグシールは磁気カップリングを利用した、フラスコ内の密閉と駆動伝達機能を持つ撹拌シールです。

Features

・High sealing performance due to magnetic coupling.
・Supports high loads. Stable transmission of the stirring power of the three-one motor.

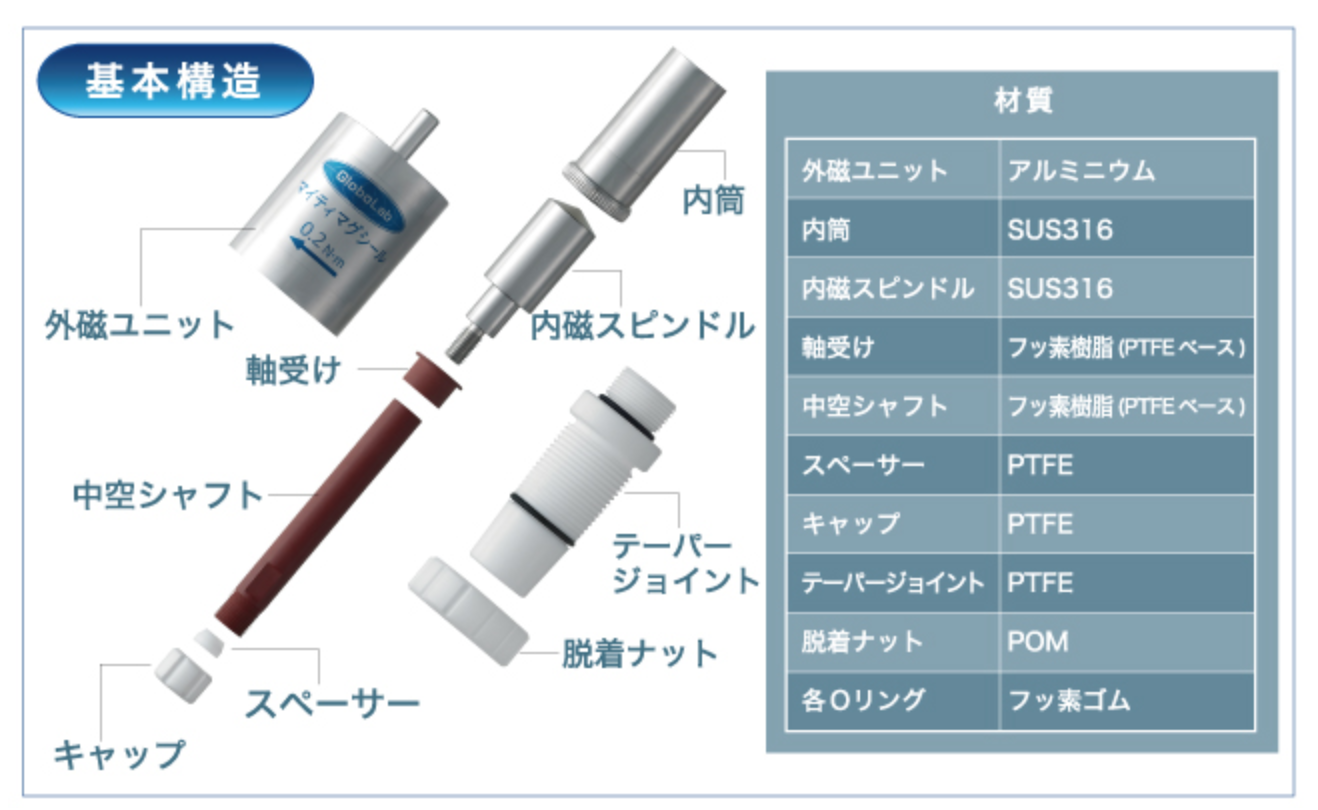

Feature image
Feature image
Specifications
MG-2-01
Corresponding torque: 0.2N ・ m
Compatible size: TS 24/40
Weight: 0.6Kg
Vacuum resistance: 10-3Pa
Price: ¥ 70,000
MG-2-02
Corresponding torque: 0.2N ・ m
Compatible size: TS 29/42
Weight: 0.6Kg
Vacuum resistance: 10-3Pa
Price: ¥ 70,000
MG-6-01
Corresponding torque: 0.6N ・ m
Compatible size: TS 24/40
Weight: 0.6Kg
Vacuum resistance: 10-3Pa
Price: ¥ 124,000
MG-6-02
Corresponding torque: 0.6N ・ m
Compatible size: TS 29/42
Weight: 0.6Kg
Vacuum resistance: 10-3Pa
Price: ¥ 124,000
MG-6-03
Corresponding torque: 0.6N ・ m
Compatible size: TS 34/45
Weight: 0.6Kg
Vacuum resistance: 10-3Pa
Price: ¥ 124,000

Glass stir bar

It is a general glass stirring rod of φ8. There are two types, A type and B type, depending on the shape of the tip.
The cap spacer and hollow shaft included with the Mighty Mug Seal allow adjustment within a range of 60 mm.
Select a stirring rod with a length that suits your environment.
Replacement stirrer blades are compatible with all glass stirrers.



MG-0-02
Product name: Glass stirring rod A type with blade 110 mm (for 100-300 mL flask)
Price (excluding tax): ¥ 6,000
MG-0-03
Product name: Glass stirring rod A type with blades 175 mm (for 500 mL to 1 L flask)
Price (excluding tax): ¥ 6,000
MG-0-04
Product name: Glass stirring rod A type with blade 250 mm (for 2-3 L flask)
Price (excluding tax): ¥ 6,000
MG-0-05
Product name: Glass stirring rod A type with blade 320 mm (for 5 L flask)
Price (excluding tax): ¥ 6,000
MG-0-07
Product name: Glass stirring rod B type with blade 110 mm (for 100-300 mL flask)
Price (excluding tax): ¥ 5,000
MG-0-08
Product name: Glass stirring rod B type with blade 175 mm (for 500 mL to 1 L flask)
Price (excluding tax): ¥ 5,000
MG-0-09
Product name: Glass stirring rod B type with blade 250 mm (for 2-3 L flask)
Price (excluding tax): ¥ 5,000
MG-0-10
Product name: Glass stirring rod B type with blade 320 mm (for 5 L flask)
Price (excluding tax): ¥ 5,000
MG-0-15
Product name: Stirring blade for glass stirring rod, width 40 mm
Price (excluding tax): ¥ 600
MG-0-16
Product name: Stirring blade for glass stirring rod, width 50 mm
Price (excluding tax): ¥ 650
MG-0-17
Product name: Stirring blade for glass stirring rod, width 60 mm
Price (excluding tax): ¥ 700
MG-0-18
Product name: Stirring blade for glass stirring rod, width 75 mm
Price (excluding tax): ¥ 800

Stir bar for high load

A PTFE stirring rod that does not run idle even in a high-load environment.
Supports length adjustment of up to 60 mm in increments of 5 mm * to 1 cm. * HS-1-01 only
Select a stirring rod with a length that suits your environment.
A dedicated mounting set is required for mounting.

HS-0-01
PTFE stirring rod for high load 110mm (for 200-500mL flask) Blade diameter 50mm
Price: ¥ 21,500
HS-0-02
PTFE stirring rod for high load 175mm (for 500mL-1L flask) Blade diameter 60mm
Price: ¥ 22,500
HS-0-03
PTFE stirring rod for high load 250mm (for 2-3L flask) Blade diameter 80mm
Price: ¥ 23,500
HS-0-04
PTFE stirring rod for high load 320mm (for 5L flask) Blade diameter 120mm
Price: ¥ 24,500
HS-0-05
PTFE stirring rod for high load 360mm (for 10L flask) Blade diameter 120mm
Price: ¥ 25,500
HS-1-01
Stirring rod mounting set (cap, stopper) for high loads
Price: ¥ 4,000
HS-2-01
Stirring blade for PTFE stirring rod width 50 mm
Price: ¥ 2,800
HS-2-02
Stirring blade for PTFE stirring rod 60 mm wide
Price: ¥ 2,800
HS-2-03
Stirring blade for PTFE stirring rod 80 mm wide
Price: ¥ 3,200
HS-2-04
Stirring blade for PTFE stirring rod 120 mm wide (for HS-0-04,05 only)
Price: ¥ 3,600

Helical coupling

By installing it between the φ8 shaft attached to the stirrer and the mighty mug seal, the shaft deviation is absorbed.

Different diameter taper joint

A PTFE taper joint that fits in common.

You can use flasks that are larger than the common mating of Mighty Mug Seals.

MG-0-01
Helical coupling φ8
Price: ¥ 9,000
MG-0-20
Different diameter taper joint TS24 / 40 → TS29 / 42
Price: ¥ 12,000
MG-0-21
Different diameter taper joint TS24 / 40 → TS34 / 45
Price: ¥ 14,000
MG-0-22
Different diameter taper joint TS24 / 40 → TS45 / 50
Price: ¥ 15,000
MG-0-23
Different diameter taper joint TS29 / 42 → TS34 / 45
Price: ¥ 14,000
MG-0-24
Different diameter taper joint TS29 / 42 → TS45 / 50
Price: ¥ 15,000
MG-0-E-SUS
Hollow shaft SUS316 specification
Price: ¥ 15,000
