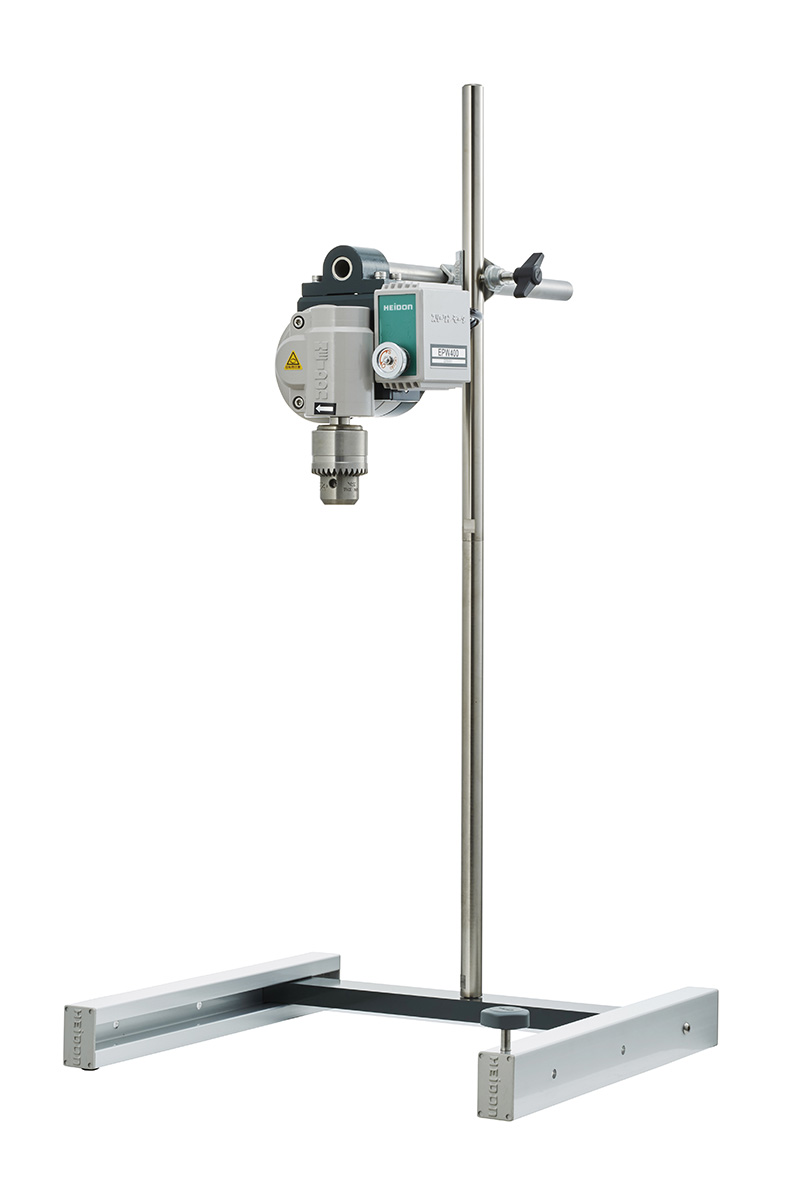

EPW200/EPW400/EPW700 Mini-Plant-Class Flameproof Air Motor Agitators
EPW200/EPW400/EPW700
These are completely flameproof agitators. Because the air pressure is adjusted using a needle valve attached to the air motor and the rotation speed and torque are controlled, these instruments can be safely used in laboratories where sources of fire are strictly prohibited.
Driven by compressed air; no electrical power supply required.
Features
- Sound is eliminated using the silencer.
- Two types are available that can support a wide variety of agitation.
Specifications
EPW200/EPW400/EPW700
Rotation Speed
EP200：190rpm
EP400：400rpm
EP700：700rpm
EP1800：1800rpm
EP400：400rpm
EP700：700rpm
EP1800：1800rpm
Maximum Torque
EP200：2.6N･m
EP400：1.3N･m
EP700：0.7N･m
EP1800：0.2N･m
EP400：1.3N･m
EP700：0.7N･m
EP1800：0.2N･m
Recommended Maximum Rotation Speed
EP200：140rpm
EP400：280rpm
EP700：500rpm
EP1800：1300rpm
EP400：280rpm
EP700：500rpm
EP1800：1300rpm
Maximum Output
0.3HP
Maximum Air Consumption
190L/min(NTP)
Standard Accessories
Clamp Holder (Type: 21 x 16) 1 piece, Safety Cover
Price
¥498,000 each
Options
Full-guard safety cover, impeller, stirring shaft, assembly stand CS2
