TriboGear Gauge head

Tribogear has an established reputation for its "range" of friction and wear testing, and the Tribogear options dramatically expand the range of testing methods.
In addition to point contact, line and surface contact measurement jigs, etc., a wide variety of jigs are available, including jigs dedicated to pencil hardness testing, and jigs that enable tackiness and peel tests.

Features

Different measurement methods and conditions for Tribogear

Tribogear has an established reputation for its “range” of friction and wear testing, and the Tribogear options dramatically expand the range of testing methods.
In addition to point contact, line and surface contact measurement jigs, etc., a wide variety of jigs are available, including jigs dedicated to pencil hardness testing, and jigs that enable tackiness and peel tests.

Responding to users

Users’ test contents are diverse, ranging from the shape of the sample to the material and the content to be measured.
If the standard measurement jig is not enough to cover your needs, please contact us. We will use our know-how to make your “wish” come true.

Specifications

TriboGear Gauge head

ASTM flat indenter

Adapted specifications: ASTM D1894 Contact surface: 2.5X2.5inch Can apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.
Application models : 14、18、22、30、34、HHS

30mm flat indenter

Contact surface: 30X30mm Can apply surface pressure to the paired test pieces after the sheet-type test piece is wound and fixed and the plate-type test piece is bonded.
Application models : 14、18、22、30、34、HHS

Ball indenter

Applies point pressure to the plate-and sheettype test pieces using a secured ball which slides the test pieces. This device is suitable to measure the difference between the test pieces based on the ball.
Application models : 14、18、22、30、34、HHS

Roll holder

Applies linear pressure to the plate -and sheettype test pieces using a secured roller which slides the test pieces. This device is suitable to evaluate transportability.
Application models : 14、30

Blade holder

This device is suitable to measure the wiping resistance of the rubber blade and to measure the sliding resistance of the shoe sole to the floor.
Application models : 14、22、30、34

Tack roller unit

Evaluates the stickiness of adhesives, floor materials or cosmetics from the rolling resistance of the stainless roller.
Application models : 14

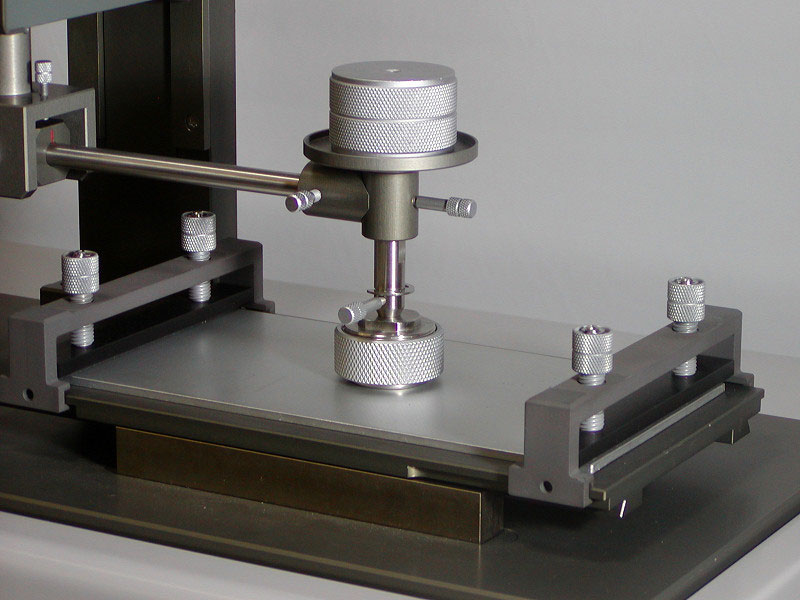

Steel-wool holder

Holds steel wool, gauze or rubber in order to measure changes in friction due to the abrasion of the test piece surface.
Application models : 14、18、22、30、34、HHS

Sand-contained rubber eraser indenter

Holds a cylindrical sand-contained rubber eraser in order to measure changes in friction due to the abrasion of the test piece.
Application models : 14、18、22、30、34、HHS

45degree pencil holder

Adapted specifications: JIS K5600 (scratch test) Measures the scratch hardness of coated surfaces and evaluates how smoothly pens or pencils write.
Application models : 14、18、22、30、34、HHS

Scratch needle

Adapted specifications: JIS K6718 Evaluates the scratch hardness of various materials and the adhesion of vacuum evaporated or paint film.
Application models : 14、18、22、30、34、HHS

T-shape peeling unit

Adapted specifications: JIS P8139 This T-shape unit allows the stable measurement of both peeling resistance and tensile strength.
Application models : 14

Peeling clip

Measures the adhesion and removability of adhesive tape or the peeling resistance and tearing strength of combined board layers. Application models : 14、18、34

Scratch needle

Adapted specifications: JIS K6718 Evaluates the scratch hardness of various materials and the adhesion of vacuum evaporated or paint film.

T-shape peeling unit

Adapted specifications: JIS P8139 This T-shape unit allows the stable measurement of both peeling resistance and tensile strength.

Peeling clip

Measures the adhesion and removability of adhesive tape or the peeling resistance and tearing strength of combined board layers.
